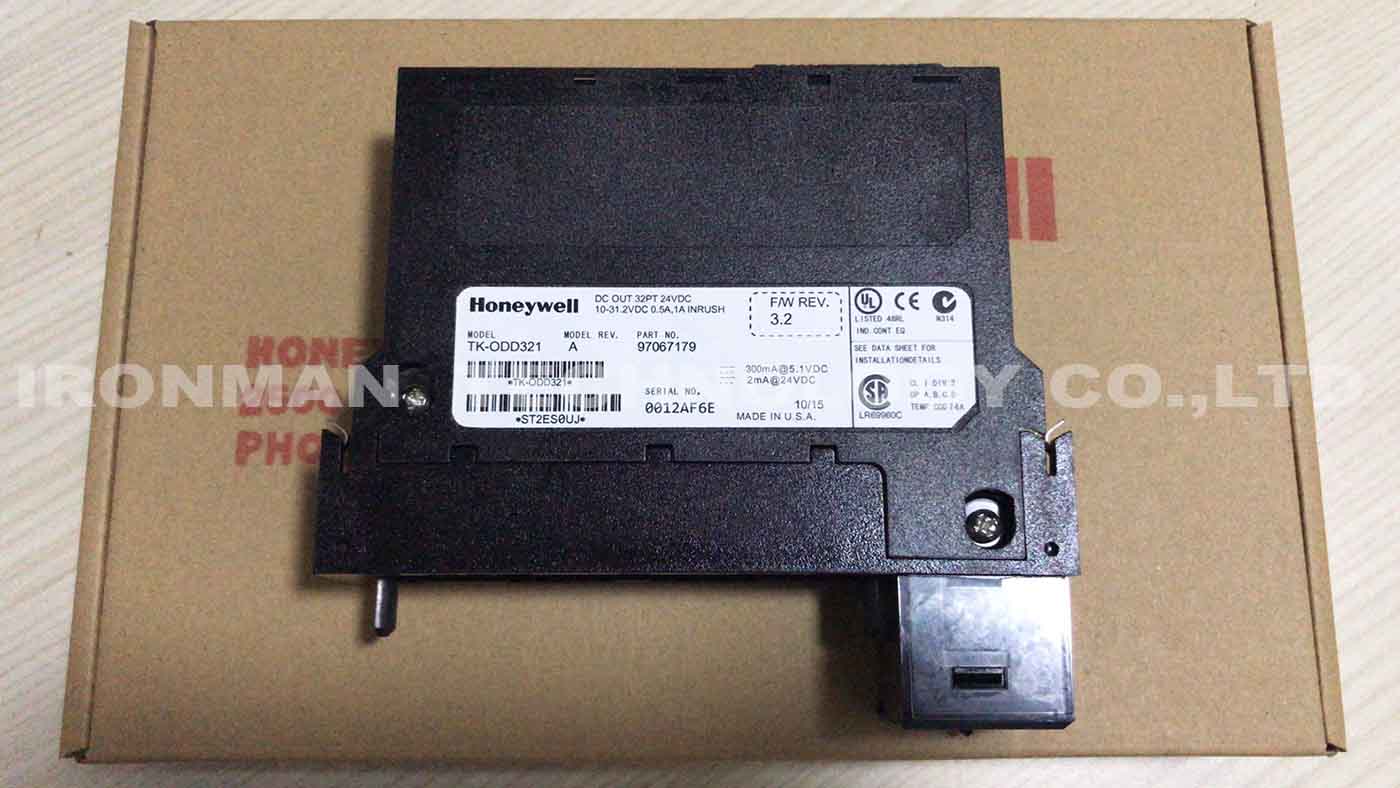

HONEYWELL TK-ODD321 DC OUTPUT MODULE BRAND NEW power supply controller
Lead time:3-5 days
New with one year warranty
TC-ODD321, TK-ODD321
Table 6-28 24 VDC, 32-Point Discrete Output Module Parameter Specification Number of Outputs 32 (16 points/common) Output Voltage Range 10-31.2 VDC @ 50C (Linear derating) 10-28 VDC @ 60 Output Current Rating Per Point Per Module 0.5A maximum @ 50C (Linear derating) 0.35A maximum @ 60C 16A maximum @ 50C (Linear derating) 10A maximum @ 60C Surge Current 1A for 10ms each, repeatable every 2s @ 60C Flash On Time 100 sec target, 150 sec max On-State Current Load (Minimum) 3.0 mA per output On-State Voltage Drop (Maximum) 1 VDC @ rated current per point (3 VDC for IEC 1131-2) Off-State Leakage Current (Maximum) 0.5 mA per point (1 mA per point IEC 1131-2 for 0.25 A output) Configurable Fault States per Point Hold Last State, ON or OFF (OFF is the default) Configurable States in Program Mode per Point Hold Last State, ON or OFF (OFF is the default) Fusing Not protected - Fused IFM is recommended to protect outputs Reverse Polarity Protection None - If module is wired incorrectly, outputs may be damaged. Output Delay Time Off to on On to off 1.0 ms maximum 1.0 ms maximum Power Dissipation 6.1 W Backplane Current See Module Power Consumption Data, page 46. Isolation Voltage Group to group User to system 100% tested at 2546V dc for 1s (250V ac maximum continuous voltage between groups) 100% tested at 2546V dc for 1s Connection Terminal Blocks TC-TBCH, 36-position terminal block
Ironman Technology Co.,LTD
Featured Brand:
● HONEYWELL ● AB ● OMRON ●SIEMENS ●SCHNEIDER
● ROSEMOUNT● ABB ● NOTIFIER ●MTL ● GE ●And many more !
Important Notes and Guidelines: 1. RTPs and cables are manufactured by and are ordered directly from Allen-Bradley (A-B). Always refer to the A-B web site for the most up-to-date RTP/Cable information. 2. Detailed information (specifications, certifications, warnings, and wiring diagrams) can be accessed from the AllenBradley Web site. Reference the Bulletin 1492 wiring systems. Please refer to Allen-Bradley Bulletin 1492 PLC/SLC Wiring System Product Line for digital RTPs/cables and Bulletin 1492-AIFM for Analog RTP and cable specifications and size details. 3. When using RTPs with an IOM, it is not necessary to order a separate TC-TBNH or TC-TBCH terminal block. This component comes with the RTP Cable assembly. 4. All RTPs are mountable on standard DIN #3 rail mounting for quick installation. 5. Always use the HW designator in catalog numbers for cables that will be used with Honeywell I/O Modules. This ensures that the Honeywell style slide-on cover will be supplied.
Conformal Coating Corrosion Protection. Corrosion is one of the leading failure mechanisms of electronic boards in harsh environments. To insure the maximum possible reliability in corrosive industrial environments, Honeywell provides an optional conformal coating solution. Conformal coating is highly recommended for any installations for which the ambient environment meets either Moderate (G2) or Harsh (G3) conditions as defined by ANSI/ISA-S71.04-1985, “Environmental Conditions for Process Measurement and Control Systems: Airborne Contaminates.” Chassis Series-A Model Numbers beginning with a TK- have conformal coating applied. Model numbers beginning with TC- do not.
|
|
