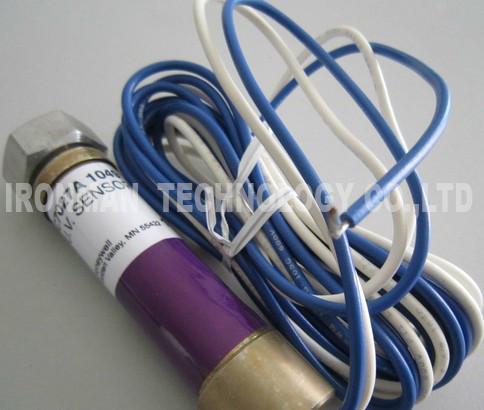

C7027A1049 Honeywell C7027A 1049 Flame Sensor Mini-peeper 1/2" Flame-eye

Lead time:3-5 days

New with one year warranty

Overview

Compact flame detector for use with flame safeguard controls with ultraviolet amplifiers.

Features

Use with Honeywell Flame Safeguard primary safety controls and burners requiring ultraviolet flame detection.
C7027 mounts on a 1/2 in. sighting pipe by using an integral collar.
Detectors can be wired in parallel for difficult sighting applications.
C7027 seals against pressures up to 5 psi (34.5kPa) when correctly installed.
Allows for blast tube mounting due to compact size.
C7044 mounts with a two screw bracket.
The C7044 UV sensor tube is enclosed in a stainless steel housing.
C7044 has the capability of side or end viewing in flame monitoring applications.

Product Specifications

Application: Coal fired burners; Gas fired burners; Oil fired burners
Dimensions (in.): 1 1/16 in. diameter x 4 in. long
Dimensions (mm): 27 mm diameter x 102 mm long
Includes: 1/2 in. NPT threaded spud connector.
Used With: Flame Amplifiers: R7249A, B, R7849A, B, R7749B, R7259, R7290
Comments: Detects ultraviolet radiation in flames
Mounting: Integral nut for 1/2 in. sighting pipe.
Approvals, Underwriters Laboratories Inc.: Listed: File No. MP268, Guide No. MCCZ
Approvals, Canadian Standards Association: Certified: Master Report LR95329-1
Electrical Connections: 2 NEC Class 1 lead wires
Vibration: 0.5 G max
Approvals, Swiss RE: Acceptable
Approvals, Factory Mutual: Approved: Report No. 24181.03
Ambient Temperature Range (F): 0 F to 215 F
Ambient Temperature Range (C): -18 C to +102 C
Lead Length (in.): 96 in.
Lead Length (mm): 2438 mm
