| Brand Name : | Honeywell |
| Model Number : | 51201420-010 |
| Price : | USD |
| Payment Terms : | T/T |
| Delivery Time : | 3-5 days |

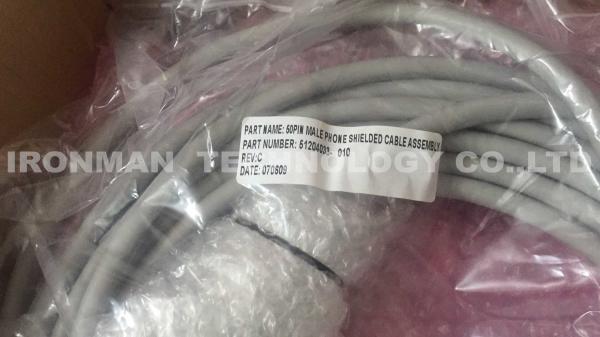

51204033-010 Honeywell Cable Products , MU KFTS10 FTA Cable 10m
Ironman Technology Co.,LTD
Featured Brand:
● HONEYWELL ● AB ● OMRON ●SIEMENS ●SCHNEIDER
● ROSEMOUNT● ABB ● NOTIFIER ●MTL ● GE ●And many more !
51201420-010 MU-KFTA10 MEASUREX CABLE IOP FTA 10M honeywell
Lead time:3-5 days
New with one year warranty
10-meter non-shielded FTA cable
The Process Manager (PM), Advanced Process Manager (APM) and High
Performance Process Manager
(HPM) are Honeywell’s leading TotalPlant Solution (TPS) system
control and data acquisition devices for
industrial process applications. They represent a powerful
combination of cost-effective Honeywell
controllers which can be applied to solve a broad range of
industrial process control problems.
The PM, APM, HPM, and EHPM offer highly flexible I/O (input/output)
functions for both data monitoring and
control. One of the unique features of this family of controllers
is its common set of Input/Output Processors
(IOPs) and Field Termination Assemblies (FTAs). All IOPs and FTAs
are usable by all three controllers (with
only minor exceptions).
This specification and technical data sheet provides information on
PM, APM, HPM, and EHPM IOPs and
FTAs. Please refer to the following specification and technical
data sheets for information about each
controller:
• PM03-400 - Process Manager Specification and Technical Data
• AP03-500 - Advanced Process Manager Specification and Technical
Data
• HP03-500 - High Performance Process Manager Specification and
Technical Data
• EHPM03-600 - Enhanced High Performance Process Manager
Specification
High and low level analog input (HLAI + LLAI - 8) processors both perform signal conversion and conditioning functions: • PV Source (Auto, Manual, Substituted) • PV Clamping • EU Conversion • PV Value Status • PV Filter (Single Lag) • Bad PV • PV Hi/Lo • PV HiHi/LoLo • PV Rate-of-Change +/- • Software Calibration • Low PV Cutoff
Besides full support of these special features, the EUCN also provides the applications layer necessary for a wellintegrated, high integrity, real-time process communications network. For example, the EUCN supports orderly data access of all data acquisition, control, configuration, and status parameters for both peer-to-peer and higher level communications, extensive alarm and message handling routines, on-going devices and communications diagnostics monitoring, support of high-level control with assignable control modes, plus system and device configuration support. All of these communications management functions are provided as standard with the EUCN. The EUCN supports peer-to-peer communications. This means that EUCN devices on the same logical EUCN can write data to and read data from other EUCN devices for additional control strategy flexibility and coordination.
|
|
