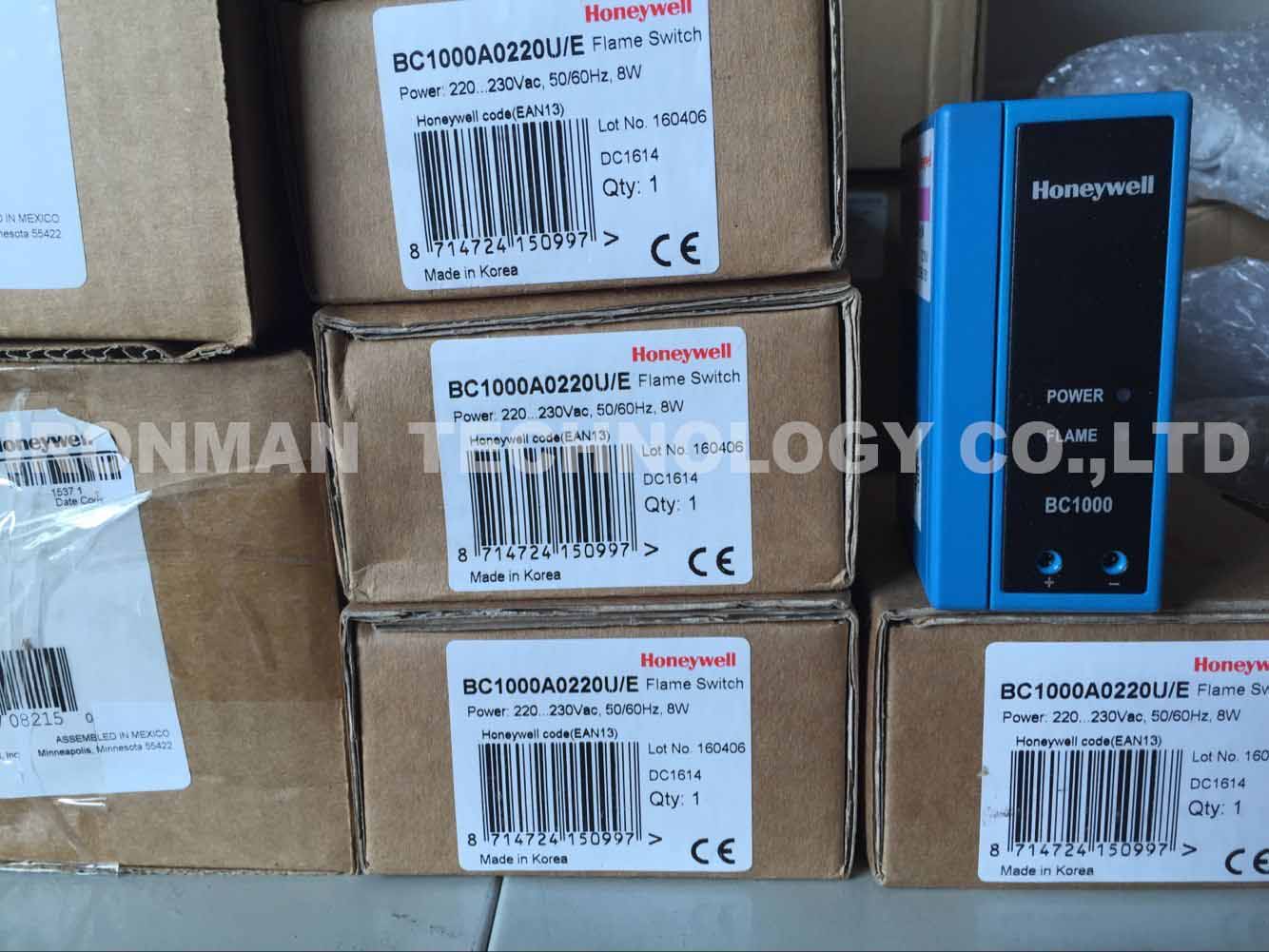

Honeywell BC1000A0220U Burner Controller New Control Box
Lead time:3-5 days
New with one year warranty
1. APPLICATION
The BC1000A/B series is a flame switch for intermittent operation to indicate presence or absence of a flame and to be applied in commercial or industrial burner installations. The BC1000A can also be used as a primary control for manually operated burner systems using a start/stop station. In addition to the flame sensing functions, the BC1000A/B provides a “Safe Start” function which checks if a flame signal is present when applying power to the device. If so, the BC1000A/B holds its operation until the flame signal disappears. The BC1000A/B can be used with a recifying flame rod or all existing non-selfcheck Honeywell “PowerTube” type UV sensors (for intermittent operation only.
The BC1000 (FR models) will operate also with the ex-Satronic IRD810/1010 range of infrared sensors. Note that this combination is NOT CE approved for use on installations that fall under the GAD (Gas Appliances Directive).
2. FEATURES
1) Compact design. 2) Plug-in wiring sub base for direct panel or DIN RAIL mounting. 3) Safe-start check (SSC) feature prevents operation when abnormal flame condition exists at start-up. 4) LED indication (Power, Flame, SSC) on the front to show operation status (SSC hidden behind the front cover). 5) Screw terminals on the front provide continuous 0~6VDC flame signal strength monitoring.
CAUTION INSTALLATION
When Installing this Product… 1) Read these instructions carefully. Failure to follow them could damage the product or cause a hazardous condition. 2) Check the ratings given in the instructions and marked on the product to make sure the product is suitable for the application. 3) Installer must be a trained, experienced, flame safeguard service technician. 4) After installation is completed, check out the product operation as provided in these instructions.
|
|
