| Brand Name : | Honeywell |
| Model Number : | TK-IDD321 |
| Price : | USD |
| Payment Terms : | T/T |
| Delivery Time : | 3-5 days |
HONEYWELL TK-IDD321 DC INPUT 24VDC MODULE NEW IN STOCK honeywell plc
Lead time:3-5 days
New with one year warranty
TC-IDD321, TK-IDD321

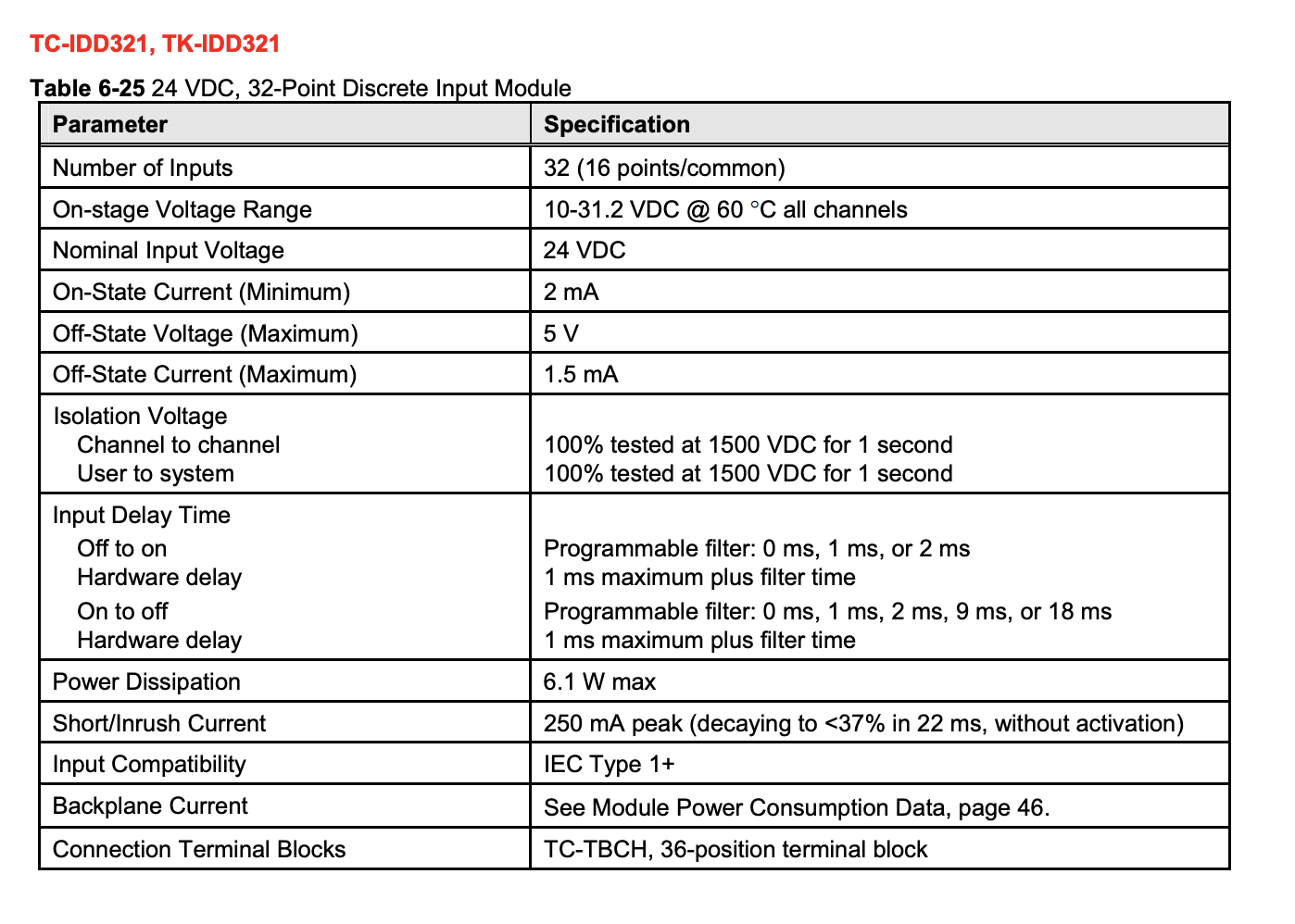

Table 6-25 24 VDC, 32-Point Discrete Input Module Parameter Specification Number of Inputs 32 (16 points/common) On-stage Voltage Range 10-31.2 VDC @ 60 C all channels Nominal Input Voltage 24 VDC On-State Current (Minimum) 2 mA Off-State Voltage (Maximum) 5 V Off-State Current (Maximum) 1.5 mA Isolation Voltage Channel to channel User to system 100% tested at 1500 VDC for 1 second 100% tested at 1500 VDC for 1 second Input Delay Time Off to on Hardware delay On to off Hardware delay Programmable filter: 0 ms, 1 ms, or 2 ms 1 ms maximum plus filter time Programmable filter: 0 ms, 1 ms, 2 ms, 9 ms, or 18 ms 1 ms maximum plus filter time Power Dissipation 6.1 W max Short/Inrush Current 250 mA peak (decaying to <37% in 22 ms, without activation) Input Compatibility IEC Type 1+ Backplane Current See Module Power Consumption Data, page 46. Connection Terminal Blocks TC-TBCH, 36-position terminal block
